Saskatoon presents a unique seismic design case: moderate hazard per NBCC 2020, yet vulnerable soil conditions across the South Saskatchewan River valley and glacial lake deposits that amplify ground motion far beyond what code minimums suggest. Many structures in the downtown core and University Heights areas sit on up to 30 meters of compressible clay till and interbedded sand lenses, where a conventional fixed-base design transfers excessive drift into the superstructure. We approach base isolation as a performance-driven solution rather than a code checkbox. By decoupling the foundation from the ground motion, isolation shifts the fundamental period of the building out of the high-energy plateau, typically reducing spectral accelerations at the isolated period by 40–60% compared to a fixed-base scenario. The team combines site-specific MASW surveys to refine the Vs profile with nonlinear time-history analysis using ground motion suites scaled to Saskatoon's 2% in 50-year uniform hazard spectrum. For post-disaster buildings or critical infrastructure, the isolation system becomes the most defensible seismic strategy, protecting not just structural elements but also acceleration-sensitive contents and mechanical systems that would otherwise fail in a moderate event.
A properly tuned isolation system in Saskatoon's Site Class D and E soils can cut base shear by half and eliminate structural damage at the Design Earthquake level.
Technical details of the service in Saskatoon
Procedure video
Typical technical challenges in Saskatoon
Saskatoon's expansion through the mid-20th century placed many institutional and commercial buildings on shallow spread footings over silty clay that is sensitive to cyclic degradation. A 2015 microtremor survey by the Geological Survey of Canada across the city revealed fundamental site periods of 0.4 to 0.7 seconds in the downtown area, aligning closely with the predominant period of a 3- to 6-storey fixed-base concrete frame — a textbook resonance scenario. When owners defer base isolation analysis until after schematic design, the structural grid, column loads, and foundation type are often locked into a configuration that makes isolation geometry awkward and more expensive to retrofit. We recommend engaging the isolation design team during the conceptual phase, when the building period, aspect ratio, and basement configuration can be optimized around the isolation plane. The risk is not only structural: in a moderate Saskatoon seismic event, non-structural damage to suspended ceilings, sprinkler piping, and data infrastructure inside a fixed-base building can render it inoperable for months, triggering business interruption losses that far exceed the incremental cost of isolators and a moat.
Our services
Our Saskatoon base isolation practice covers the full design spectrum, from feasibility studies comparing isolation versus conventional lateral systems through to peer review of bearing shop drawings and construction-phase testing. Each deliverable is calibrated to the local glacial stratigraphy and NBCC spectral shape.
Isolation System Feasibility & Concept Design
Comparative analysis of fixed-base and isolated schemes using Saskatoon-specific site response spectra. We evaluate isolator performance, moat geometry, utility interface requirements, and cost-benefit in terms of expected annual loss reduction.
Nonlinear Time-History Analysis & Peer Review
Full 3D NLTHA with ground motion suites selected and scaled to match the NBCC 2020 uniform hazard spectrum for Saskatoon. Bearing properties are modeled with upper- and lower-bound stiffness to envelope the 90th percentile response.
Isolator Testing Protocol & Construction Support

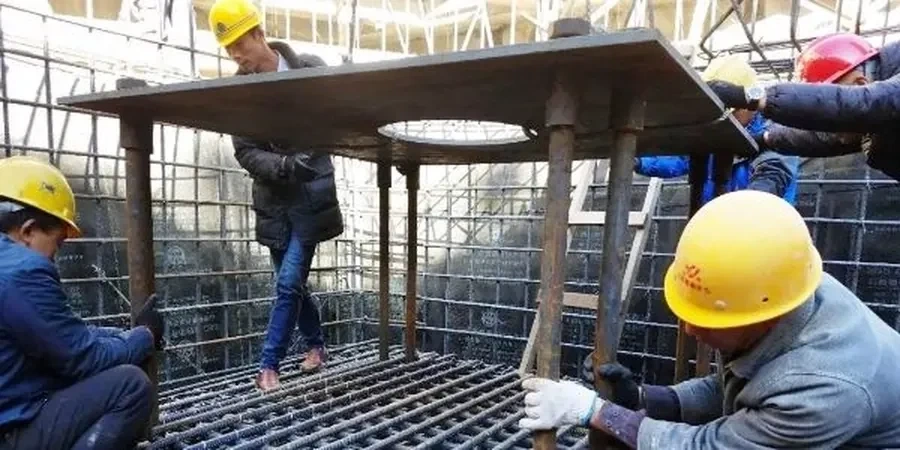

Development of prototype and production test matrices per ASCE 7-16 Section 17.8, plus on-site support during isolator installation, grouting of base plates, and commissioning of the moat cover and seismic gap.
Top questions
Is base isolation justified for a mid-rise building in Saskatoon given the moderate seismic hazard?
Justification depends on soil class, occupancy category, and performance objectives. On Site Class D or E soils, spectral amplification can make a 4- to 7-storey fixed-base building respond to ground motions much more severely than the NBCC short-period values suggest. For post-disaster or high-continuity facilities, isolation protects not just the structure but the interior systems — mechanical, electrical, and data — whose downtime cost often surpasses the structural repair bill. We run a preliminary cost-benefit analysis using FEMA P-58 methodology to quantify the expected annual loss reduction, and in most cases the payback period is under 15 years for essential buildings in Saskatoon.
What is the typical cost range for designing a base isolation system in Saskatoon?
Our design fees for a base isolation system, including feasibility study, nonlinear time-history analysis, isolator specification, and construction-phase review, generally range from CA$6,440 to CA$10,840 depending on the building complexity and number of isolators. The isolator hardware itself is a separate supply cost managed by the bearing manufacturer and procurement process.
How do you handle the interface between the isolation layer and the surrounding soil in Saskatoon's expansive clay?
The moat wall must be designed for the MCE displacement plus an allowance for soil swelling pressure and frost heave, both of which are relevant in Saskatoon's climate. We detail a compressible void form or an over-excavated gap behind the moat wall to absorb seasonal ground movement, and where the water table is shallow — common near the river — we include a drained moat detail with a sump and pump to prevent hydrostatic uplift on the isolation pedestals.
